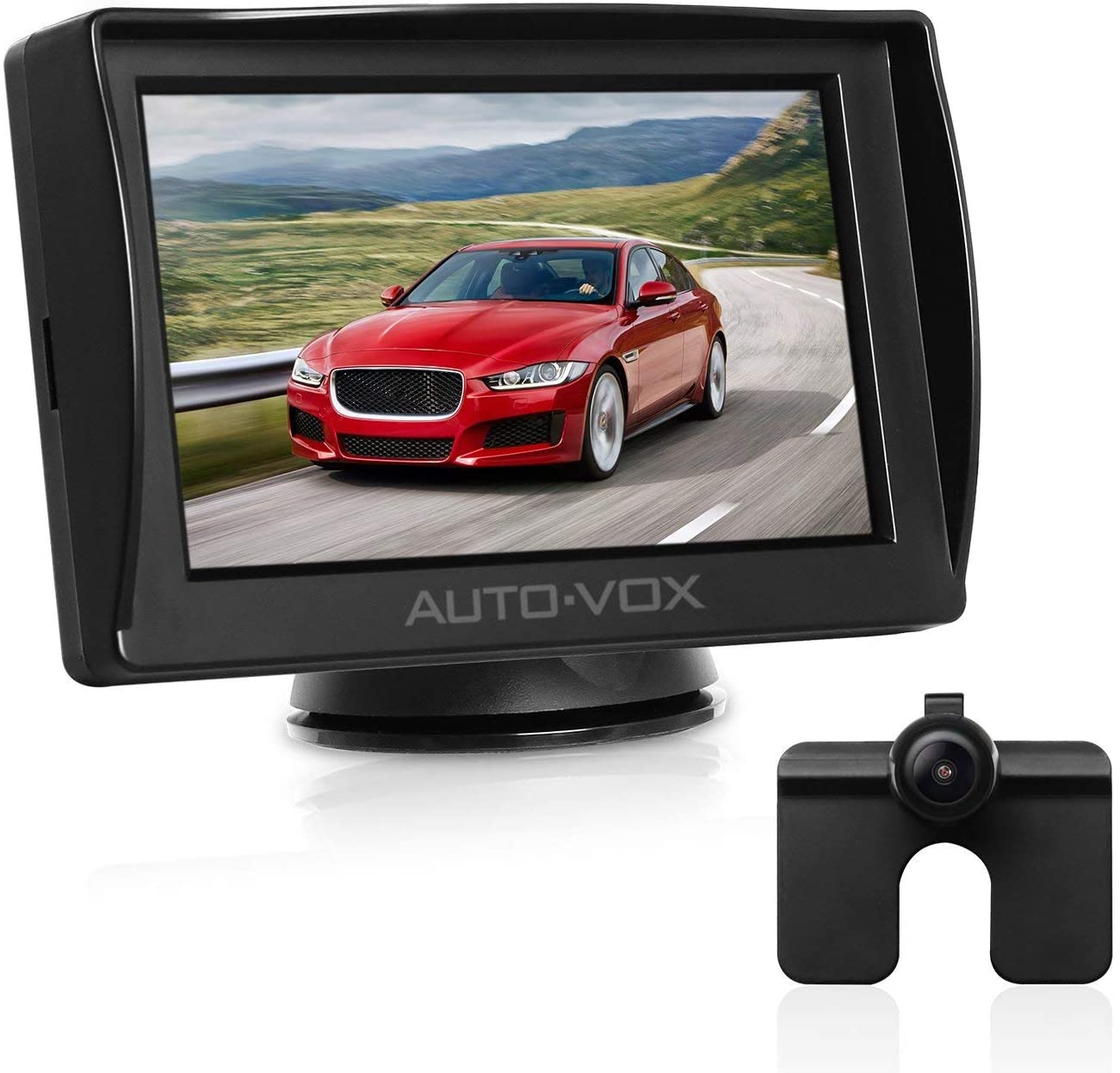

AUTO-VOX M1 4.3’’ TFT LCD Monitor Backup Camera Kit, Easy One-Wire Installation, IP 68 Waterproof Camera for Truck, Sedan
Most of the wired Monitors have the complex wiring problem, most of the wireless car monitors have the unstable signal transmission problem.
The M1 Rear view Monitor is designed with stable signal transmission and one wire easy installation.

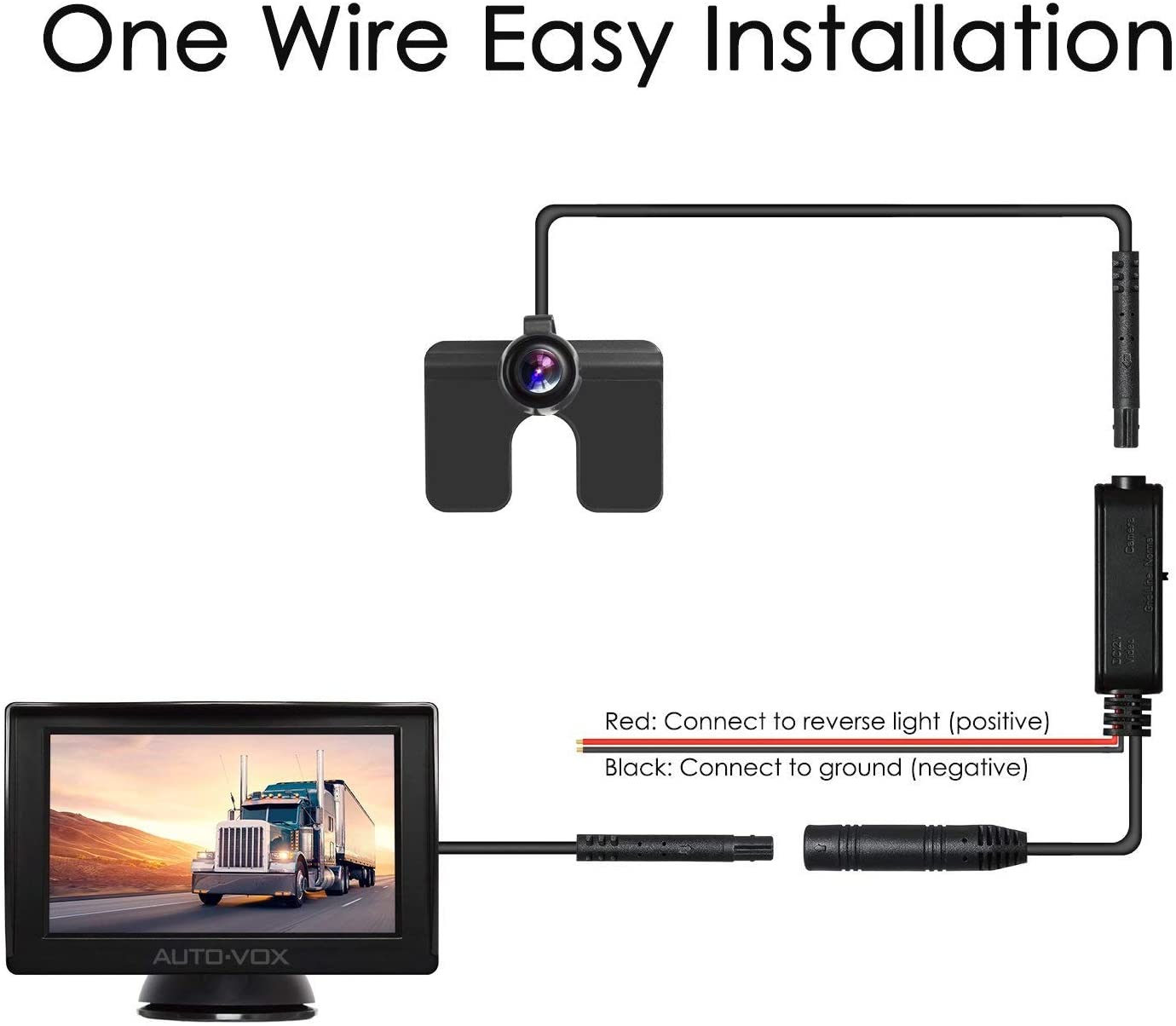

Installation Steps:
1. Install the backup camera by connecting the camera red wire with reversing light and black wire with ground (metal part on the car).
2. Route the video cable from back to front.
3. Find a suitable place and fix the Monitor on windshield or dashboard as you like
4. Connect the Monitor wire to the video cable and done!
Superior Quality Night vision Waterproof Camera

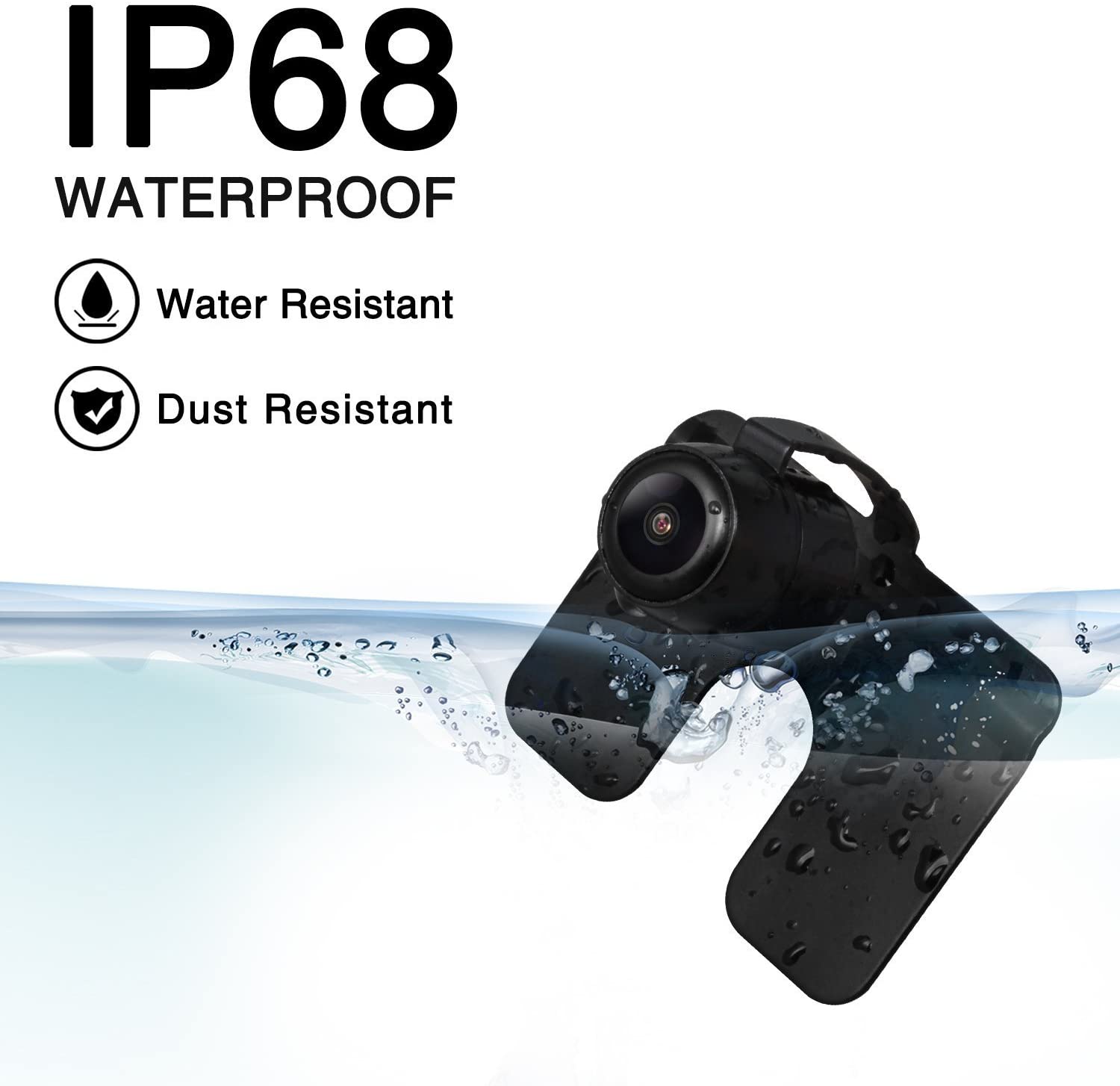

IP68 waterproof camera enables to work well at rainy days
Extra low illumination night vision camera performs well at night.

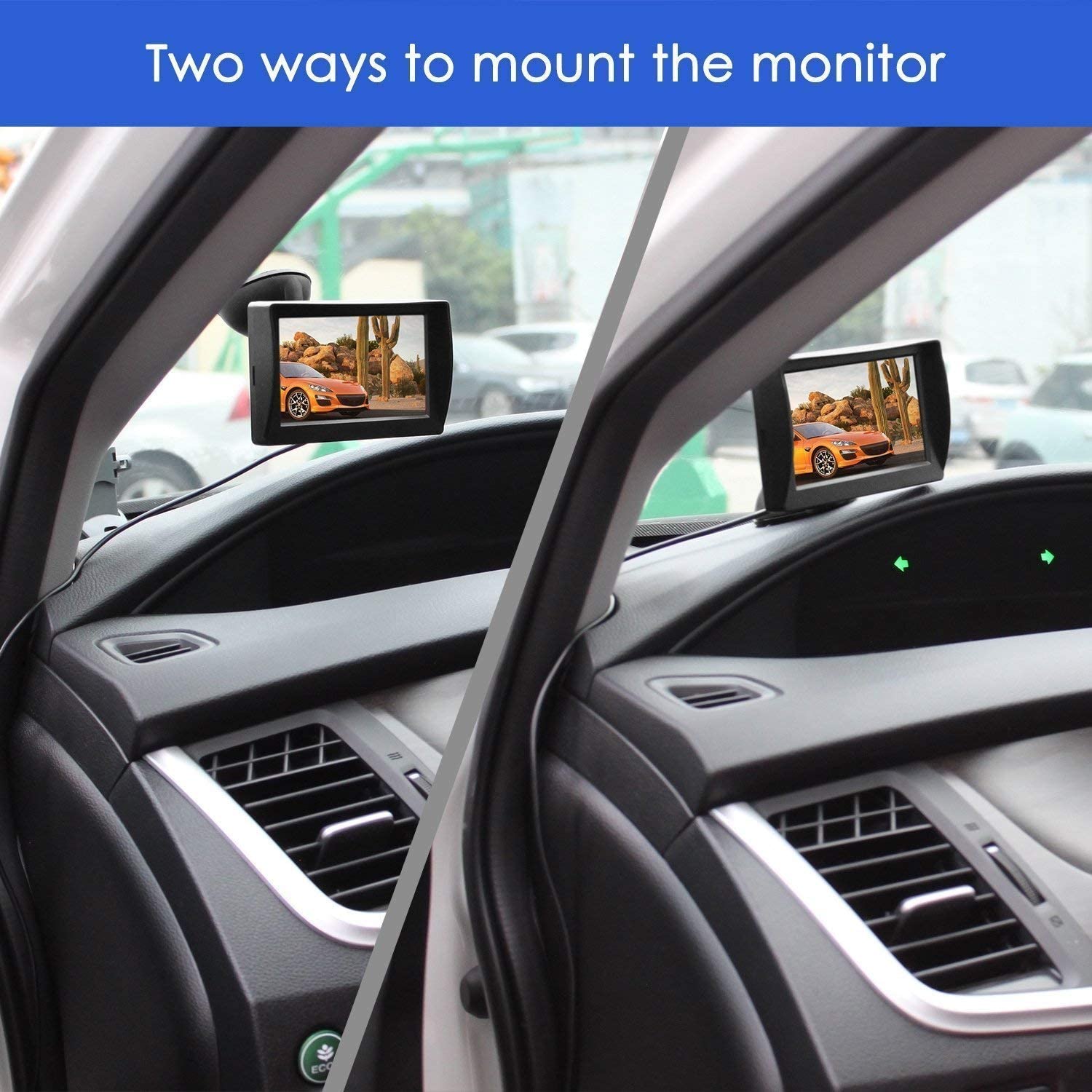

Reusable and durable Bracket Mount
360 degree Rotation enable to mount the monitor on windshield or dashboard as you like.
Washing the dirt from the holder bottom and wait till it is dry, it becomes sticky again.
Monitor Specification:
Monitor Screen Size: 4.3-inches
Supply voltage: DC10.5V-15V (12V normal)
TV system: PAL or NTSC system (auto-convert)
Monitor Resolution: 480*272 RGB
Power Mode: Automatic on when video signal received
Camera Specification:
Supply voltage: DC12V normal
Image device: 1/4 inch color
TV System: NTSC system
Effective pixels: 720*480
Minimum illumination: 0.5 LUX
S/N ratio: More than 48db (AGC-Off)
Package Included
1* Monitor
1*Camera
1*Video Cable
1*User Manual
