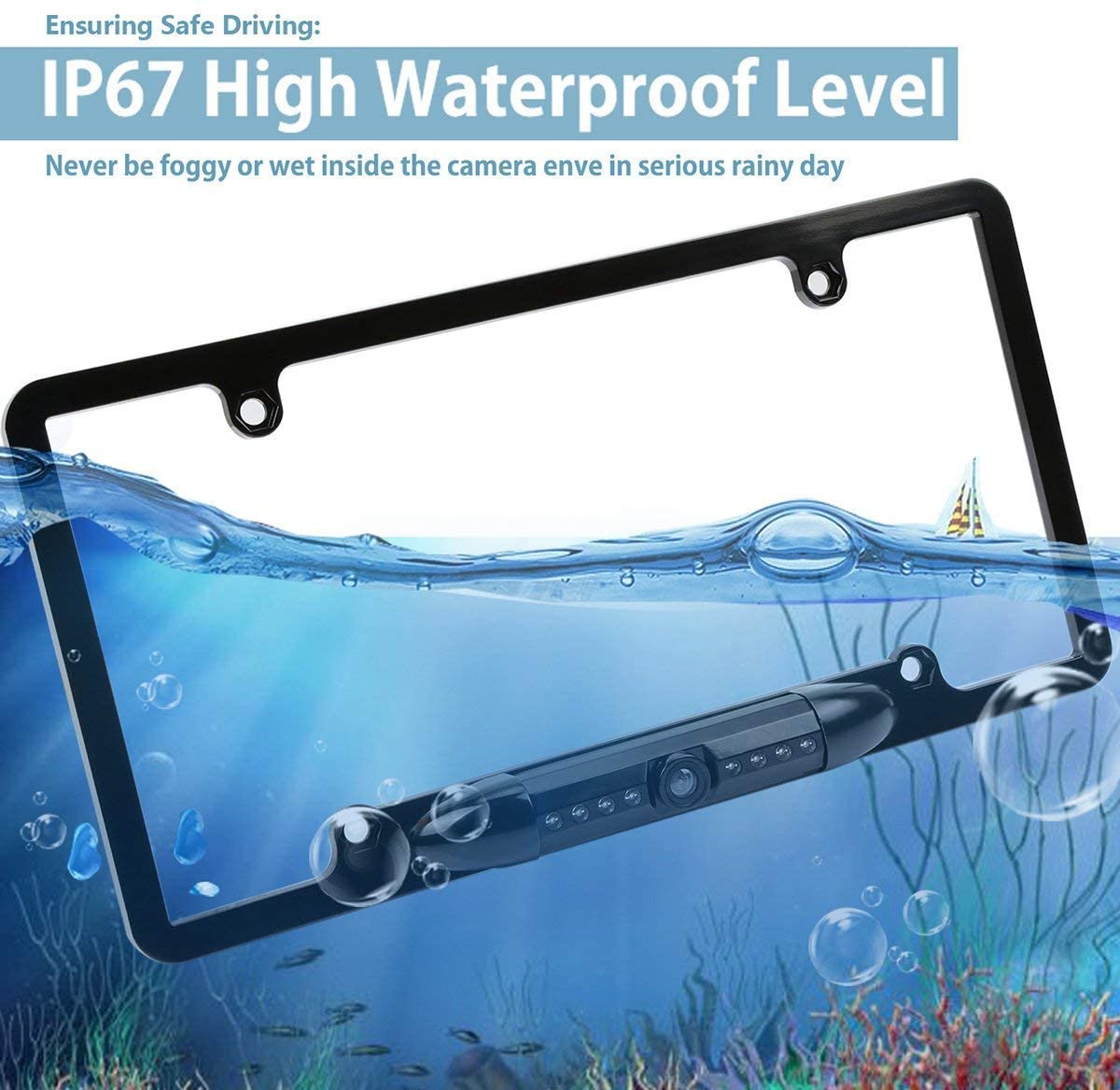

License Plate Frame Backup Camera Night Vision Car Rear View Camera with 8 Bright LEDs 170° Viewing Angle Waterproof Backup Camera Vehicle Universal Reversing Assist Security
Specifications
- Sensing area: NTSC 4.08 x 3.10mm
- Effective Pixels: NTSC 795*596 pixels
- Horizontal Resolutions: 480 TV lines
- Minimum Illumination: 0lux with IR on
- Video output: RCA connector, 1.0V p-p, 75ohm
- Power Consumption: 60mA
- Power Supply: DC12V
Purchase Notes:
1. Our Atokit license plate frame backup camera is perfect for rear view. The Monitor/LCD/Screen/Display/Radio is NOT included.
2. Easy to intall by reading the user manual, and this is a wireing car backup camera instead of the wireless.
3. This camera only supports NTSC video system, so please make sure your monitor supports NTSC video system before you buy it.
Package Contain:
1 X License Plate Frame Mount Rear View Camera
1 X 3.5ft Power Cable
1 X 20ft RCA Video Cable
1 X User Manual
Installation Notes:
*During installation, please connect the power cable of the backup camera to the harness wires that connect to the backup light on the tail light assembly.
*The RED wire end is positive, while the BLACK one is negative. And connect the RCA output end to the car monitor.
*The camera switch is controlled by the reverse gear shift.
*Please take care of the sealing to prevent water leakage when installation.
*ONLY the generic suitable tool can be helpful for you to release the set screw on the camera and adjust the camera up and down for desired view angle.
*When connecting this car backup camera to a FACTORY RADIO, a suited Harness & Programmer（not included because different RADIO need a different Harness & Programmer) will help you complete installation more efficiently.
*You can apply electrical tape for the joint of the red power wires and RCA wires, and use zip ties to fasten the wire on your vehicle.
