Miady 30 Amp 125 Volt RV Power Outlet Box, Enclosed Lockable Weatherproof Outdoor Electrical NEMA TT-30R Receptacle Panel, For RV Camper Travel Trailer Motorhome Electric Car Generator
Product Description
SPECIFACATION:
- Material：Iron , type 3R rainproof enclosure

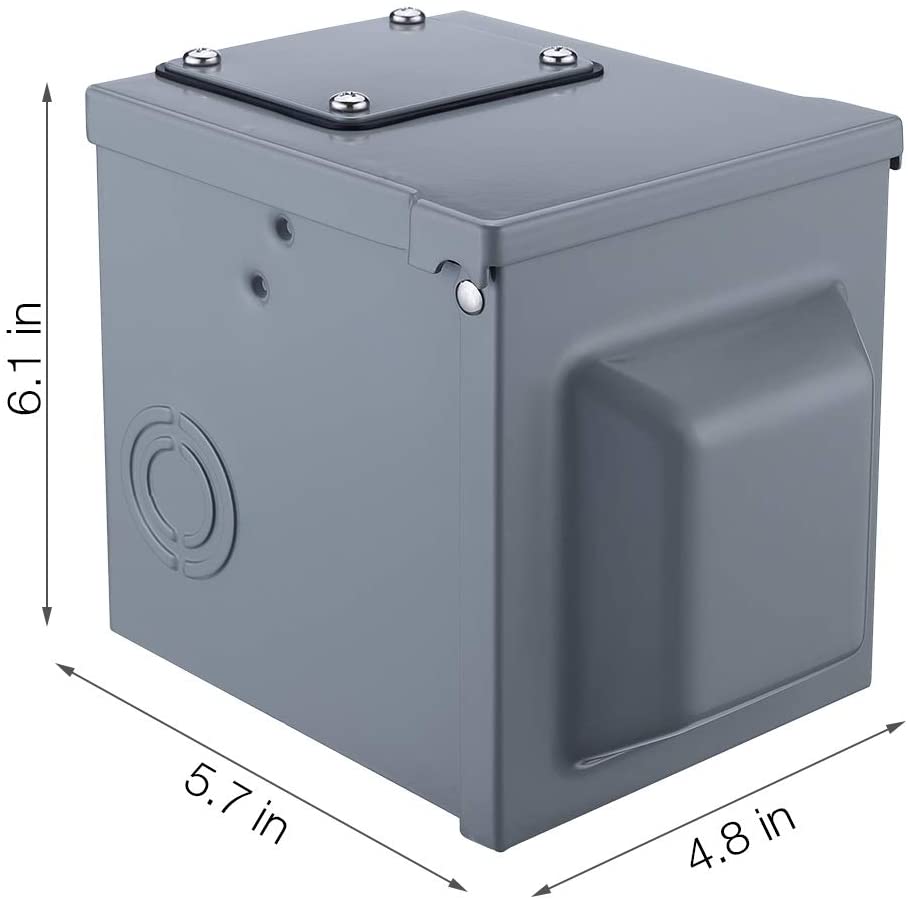

- Dimensions：4.8*5.7*6.1 inches
- Current Rating：30 Amps
- Voltage Rating: 125 Volt
- Socket type: Nema TT-30R receptacle
- Certification: ETL listed
If you have any questions about installation or use, please contact Miady, we'll provide you with a video of the operation
|
|
|
|
|---|---|---|

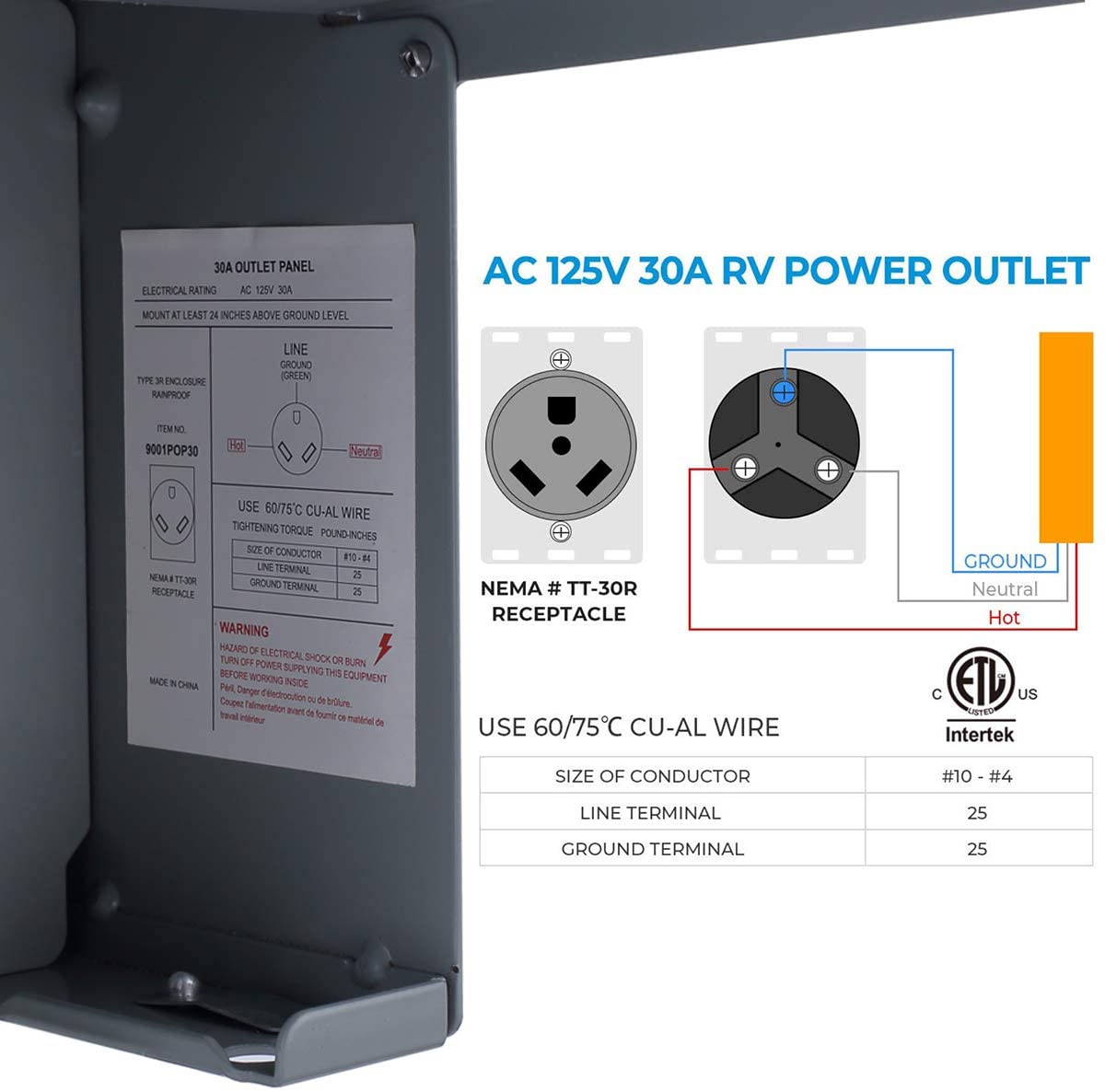

Easy to DisassembleUse a cross screwdriver to easily open the top and socket panel for wiring |

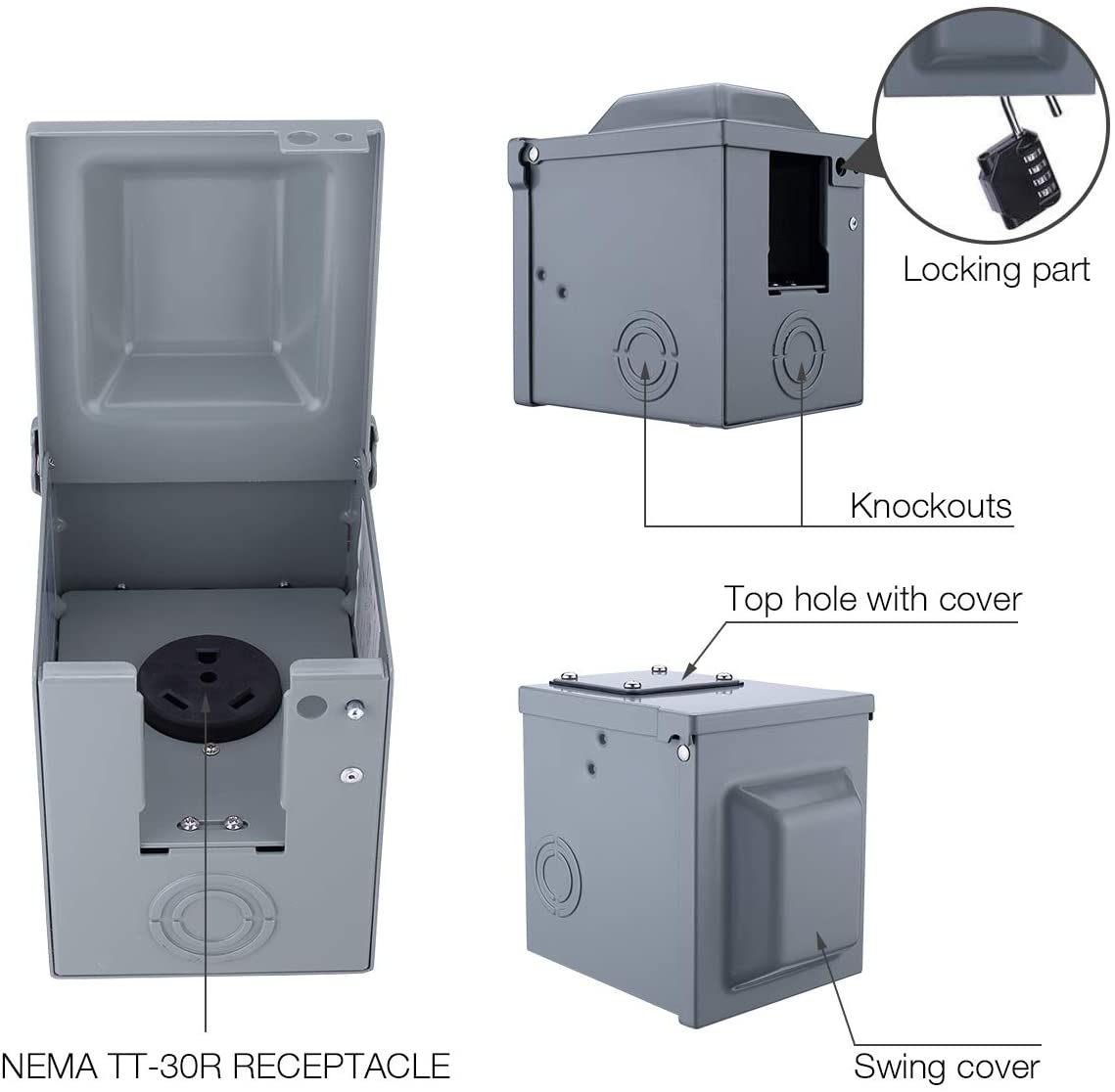

Knockout SizesIn addition to the top entry, the side and bottom knockouts can also pass through the conduit perfectly |
Screw holes & Hook holeBefore installation，it is suggested that you must select an appropriate position where your RV park for the most time and your main breaker panel near by |
|
|
|
|
|---|---|---|

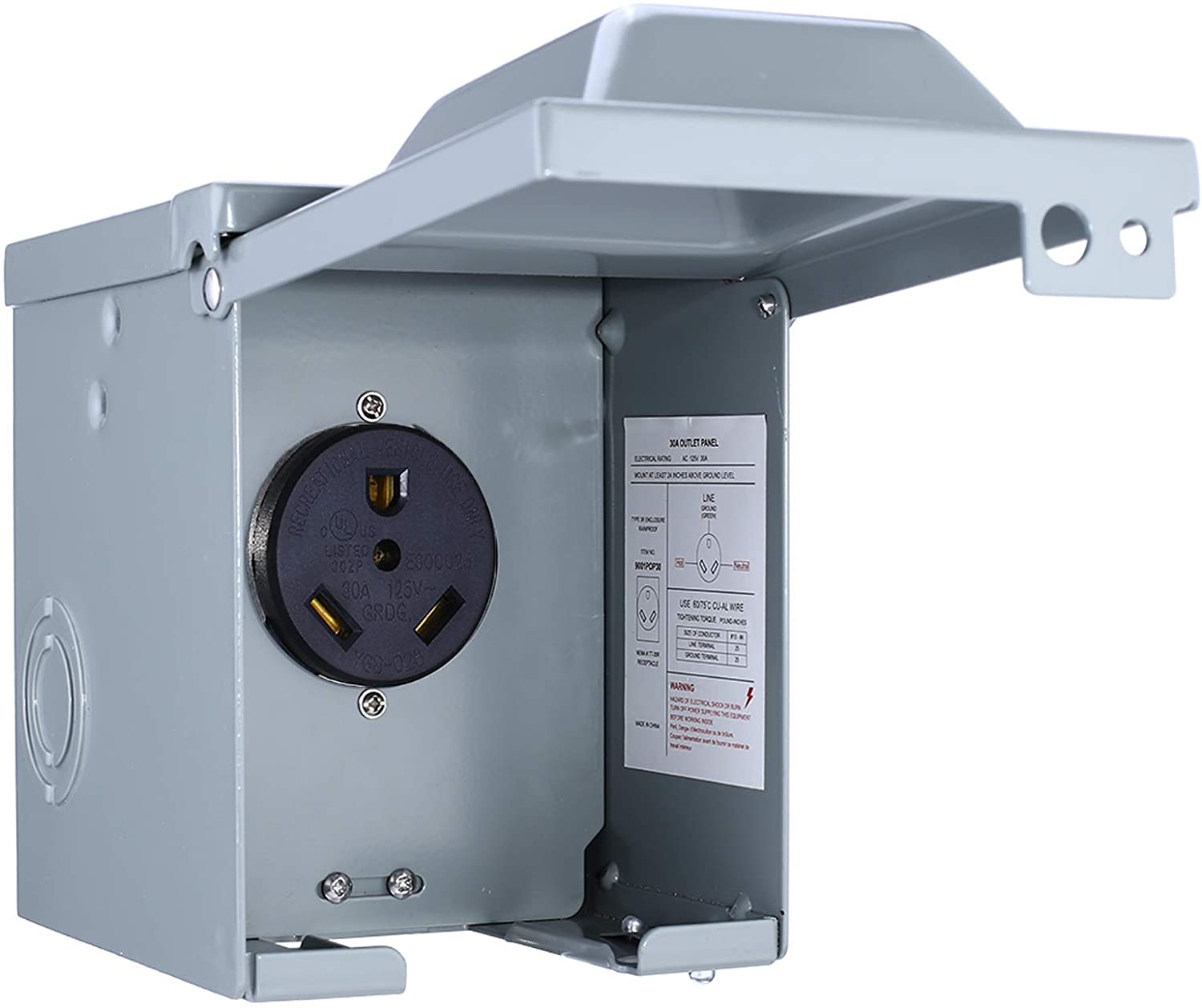

30 Amp RV Outlet boxETL listed, 30 Amps, 125 Volt, Nema TT-30R receptacle |

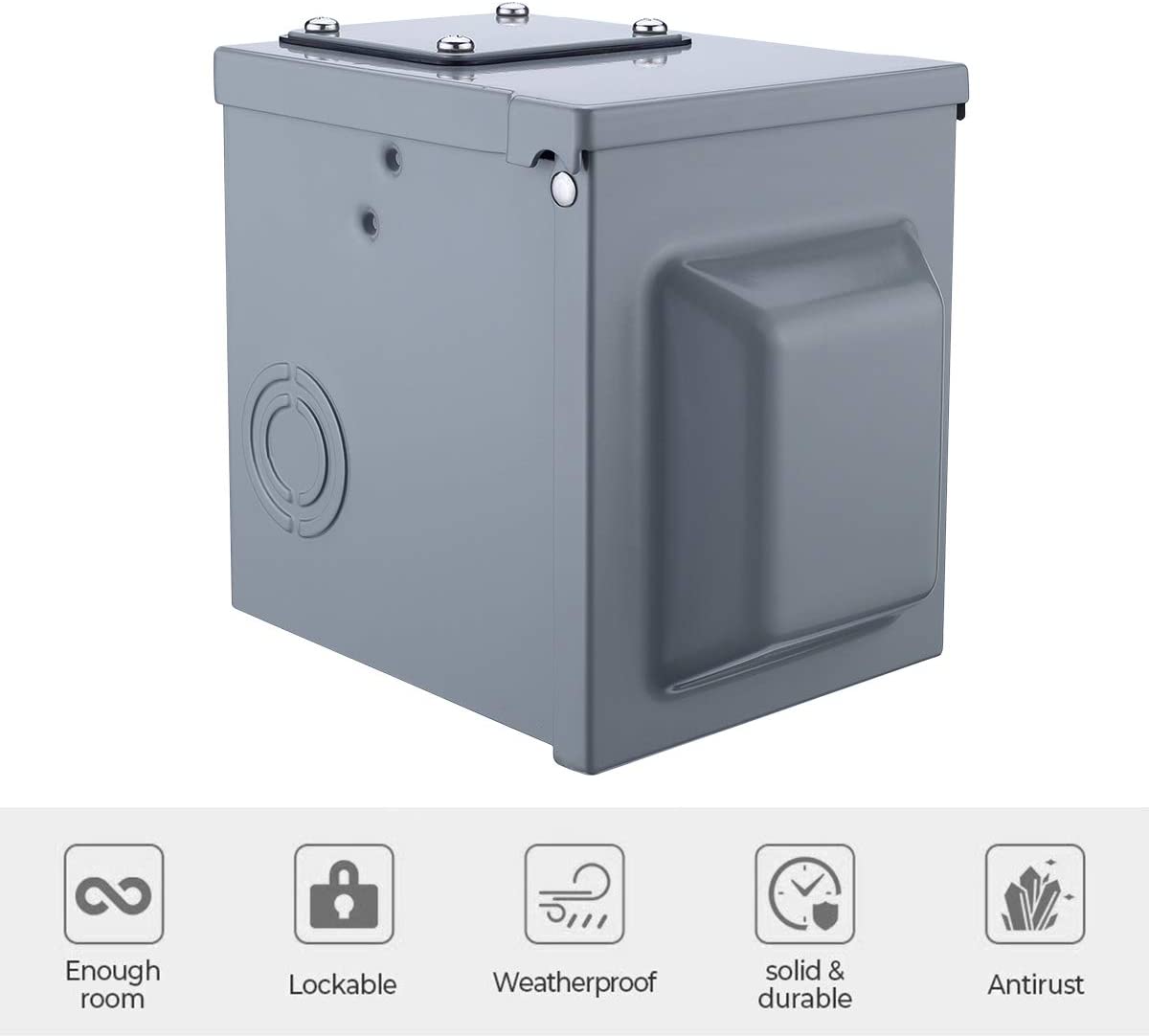

Enough RoomThere is enough space for wiring and accommodating large handle plugs |

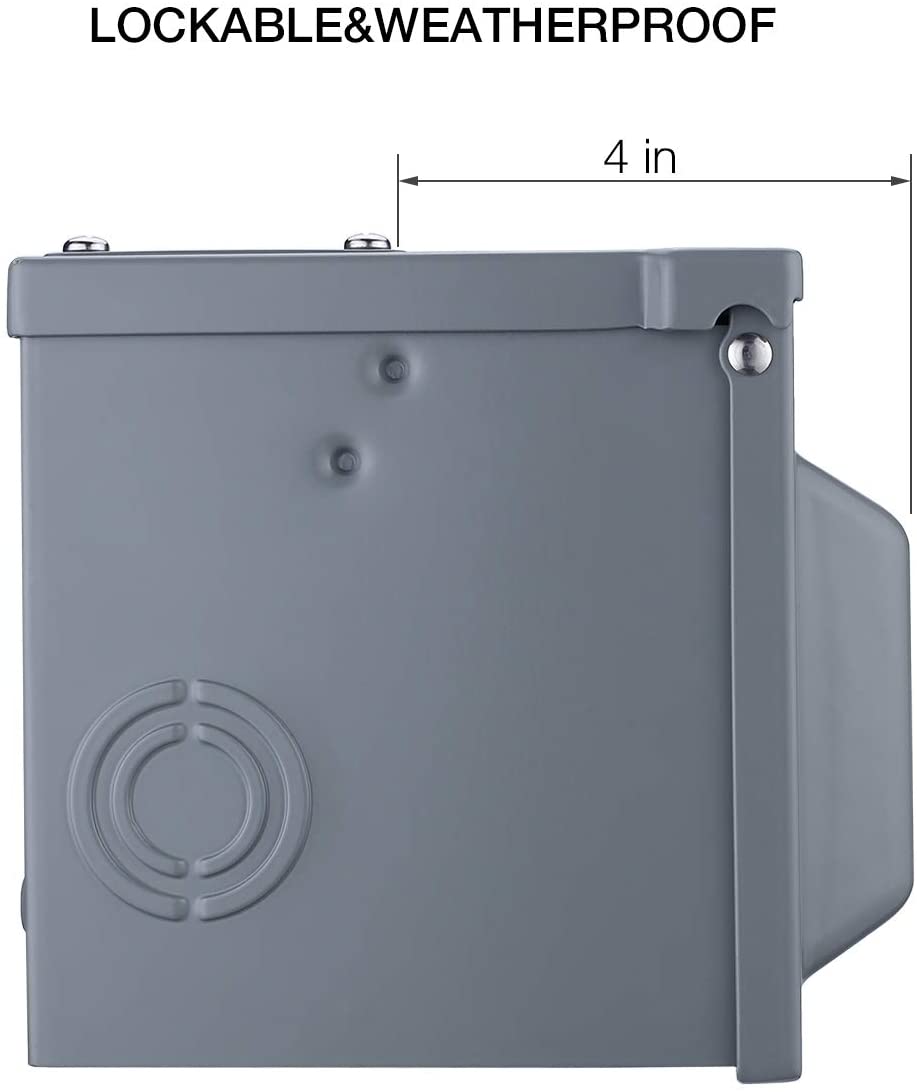

Lockable for ProtectionLocks for protection of circut and cable from tampering. Avoid electric shock to ensure the safety of children with locking option |
|
|
|
|
|---|---|---|
|
|
|
|
